Aluminum composite panel is a new type of building decoration material with the advantages of light quality, good stiffness, smooth surface, rich and colorful, convenient construction, etc. It is widely used in curtain wall, indoor and outdoor decoration and advertising signage, etc. It is an important decoration material reflecting modern architecture and decoration style.



Try the width of the slotting with a scrap board, then add half the length of the slot width at each folded corner of each board, one if a board folds two corners, then add two halves of the length.

The method of slotting aluminum composite panel is as follows.

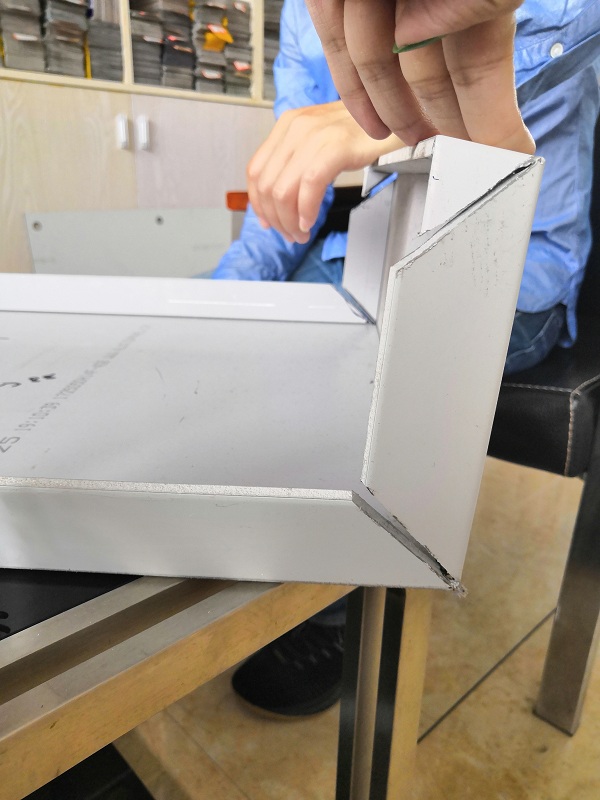

1、It is recommended to use the way of folding the edges around.

2、Without folding the edge, aluminum profile inlay can be used to fix around the aluminum composite panel, and weatherproof sealant can also be used to seal.

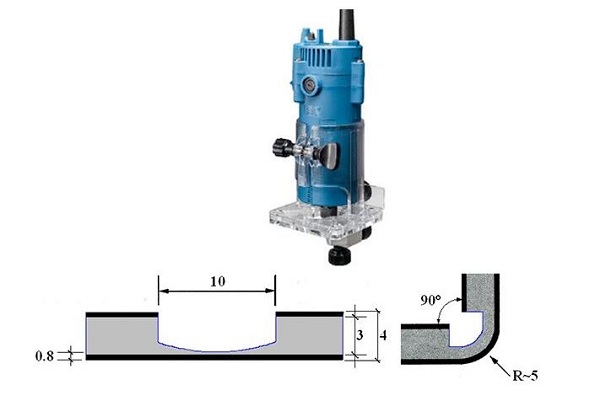

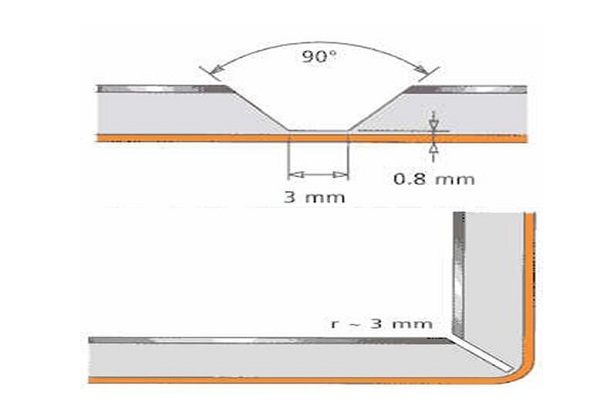

3, folding edge construction, should be grooved at the folding edge, generally can open V-groove, U-groove, etc., several typical grooving methods as shown in the figure.

4, should use special grooving machinery for aluminum composite panel to ensure that the grooving depth does not hurt the opposite aluminum, and leave a 0.8mm thick plastic layer. Reinforcement measures such as adding edge ribs can be used at the slotting as needed.



l You may also want to know about aluminum composite materials from DERACP



Coating	PE / PVDF/ FEVE/ NANO
Core	LDPE/Fireproof
Length	Customized
Color	Solid / Metallic / Marble / Wooden / Brush / Glossy/ Mirror, custom
MOQ	600 SQM each size per color
Brand / OEM	DERACP or Customized
Delivery	15 day after deposit received and color confirmed
Payment Terms	T/T / L/C / Western Union / Paypal
Packing	Wooden Package or bulk loading





Application:

1、aluminum composite panels acp wall cladding

2, the old building exterior wall modification and renovation. wall cladding sheets aluminum composite panel

3、Balconies, equipment units acp , indoor compartments acm .

4、acp sheet for advertising sign board, display stand.

5、Interior wall decorative acp panels,ACP ceilings, advertising signs ACP panels.



l About DERACP



DERACP found in 2000 ,we are specialized in manufacturing building materials, such as Aluminum Corrugated Composite Panel (ACCP) , Aluminum Composite Panel (ACP), fire rated aluminum composite panels ,Color coated Aluminum Coil etc.The factory located in Wenzhou, Zhejiang Province, China, all transportation options are convenience to the factory.It's easy to get to the airport and port. Our factory covers an area of 15,000 square meters , the warehouse covers an area of 5000 square meters and has six production lines. We have the best aluminum leather suppliers and adhesive suppliers .



We currently have over 300 employees including 8 engineers, all of them are participate in the composite materials development more than 10 years . Our factory is ISO9001:2008 certified in quality management systems, ISO14001 :2004 certified in environmental management systems and SAS 18001 certified for Occupational Health and Safety and BSCI(Business Social Compliance Initiative) certified. Our products also have passed SGS, CE(attestation of European Union), and CTC(China Building Material Certification).





If you have any questions, contact me, please.

Contact: Kerry zhu

Whatsapp & WeChat : +86 130 4067 0248

Email :  kerry@der-acp.com

You’ll get my response within 24 hours.
